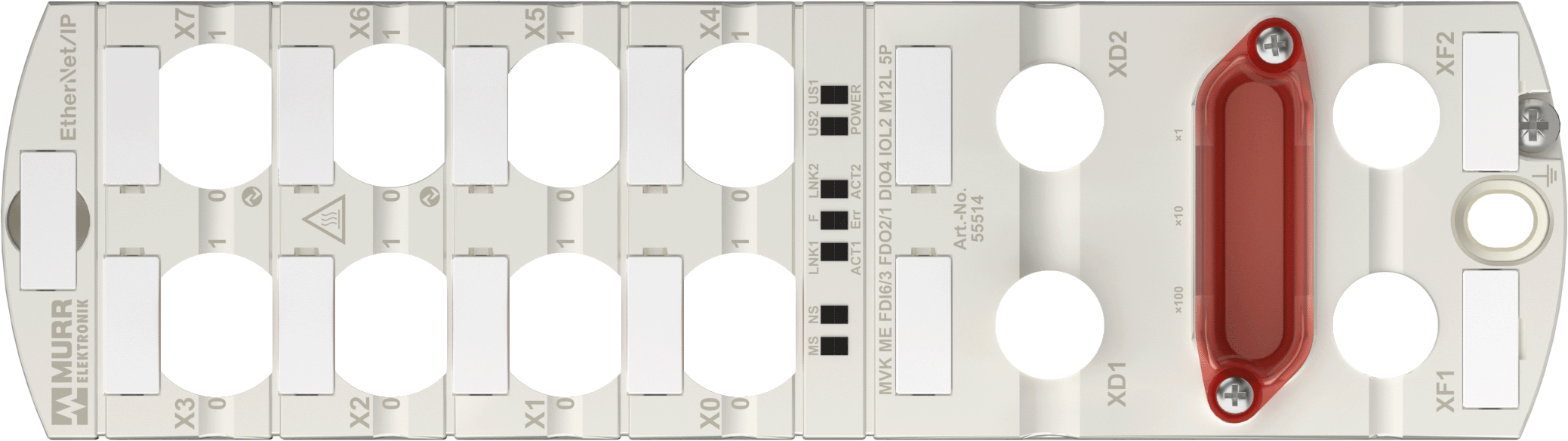

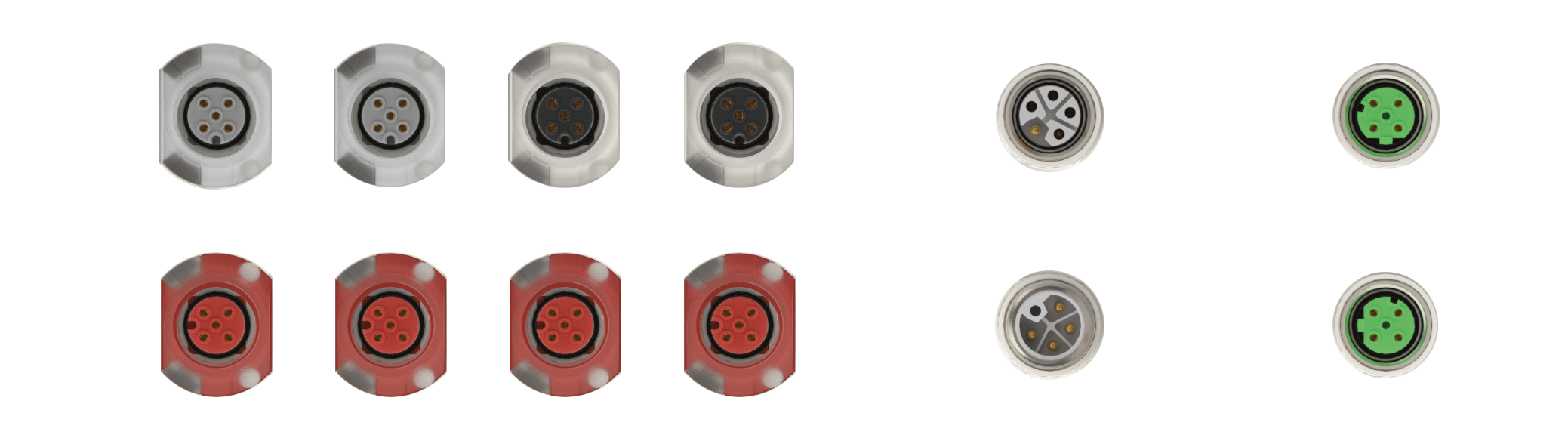

MVK Fusion CIP Safety

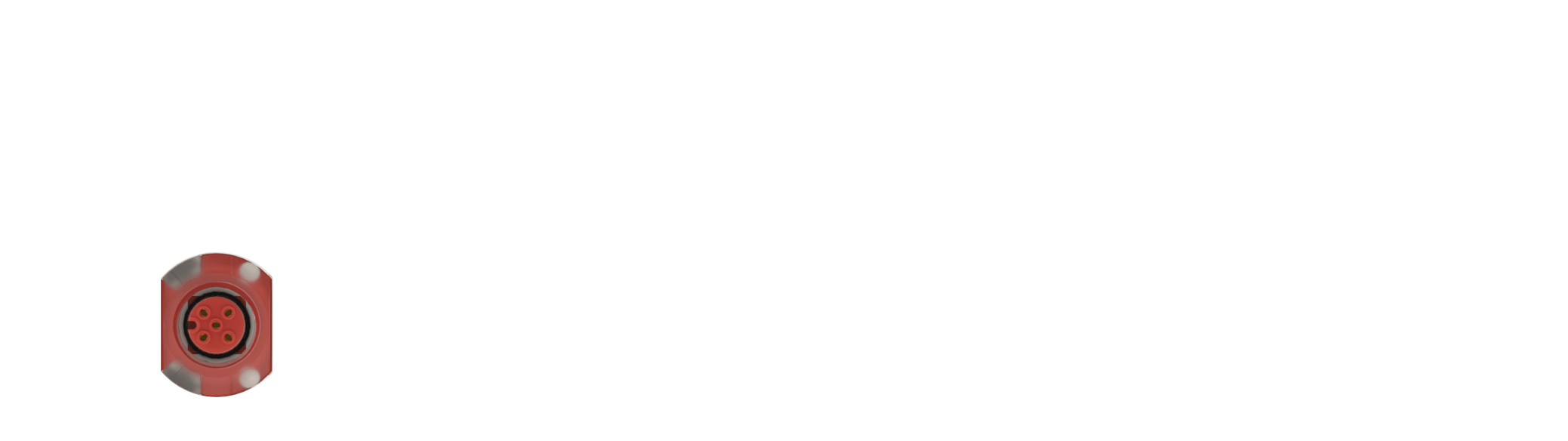

The secure output port X3 offers a powerful and flexible solution for your applications.

• Up to 2A per channel
• One or two safety outputs per IO port
• Adjustable output behavior (P-P, P-M, P-P-M)
• Control of various actuator types, including double valves
• High diagnostic coverage through dark test

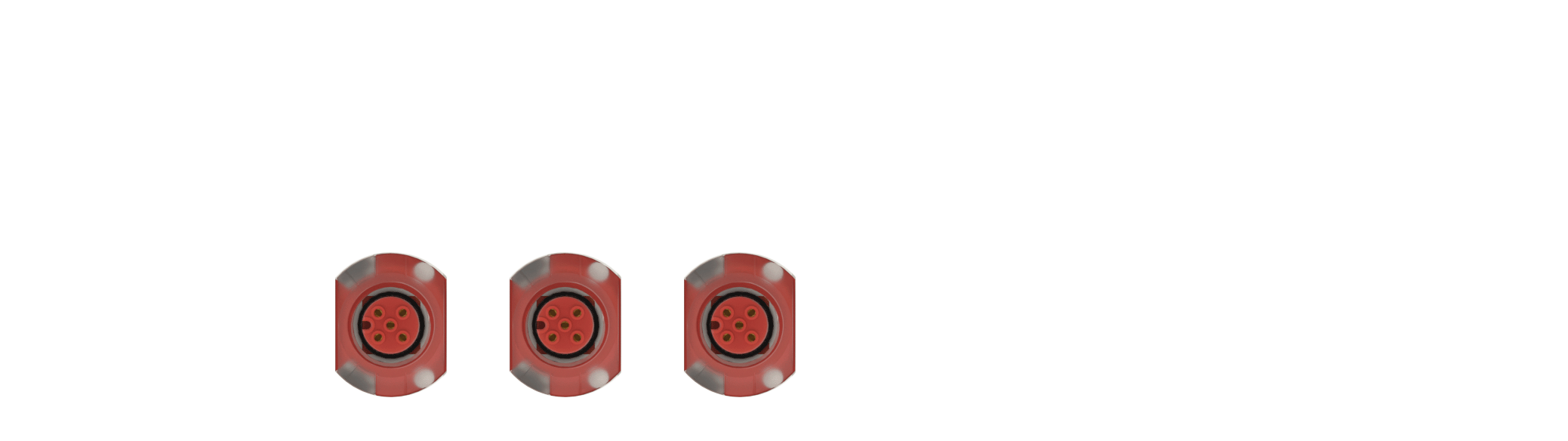

The safe input ports X0, X1 and X2, each with two channels, record signals from typical safety sensors up to the maximum performance level e.

• Individual test pulses for detecting peripheral faults
• Robust 24V DC / 700 mA power supply
• Short-circuit and overload-proof
• Adjustable parameters such as discrepancy, input delay and sensor valence

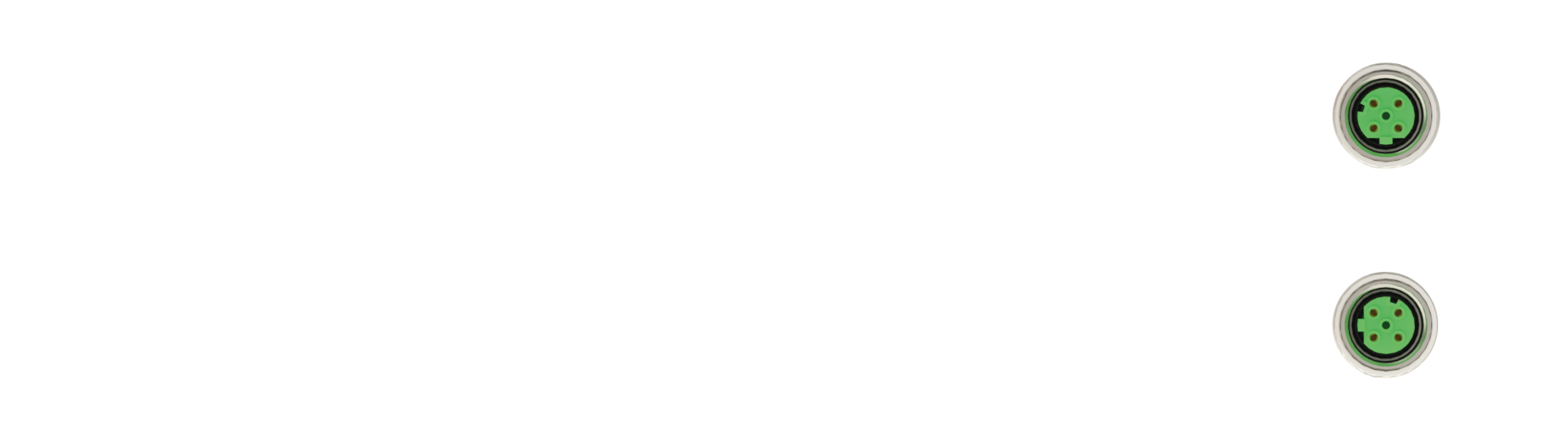

M12 D-coded Ethernet ports for backbone communication.

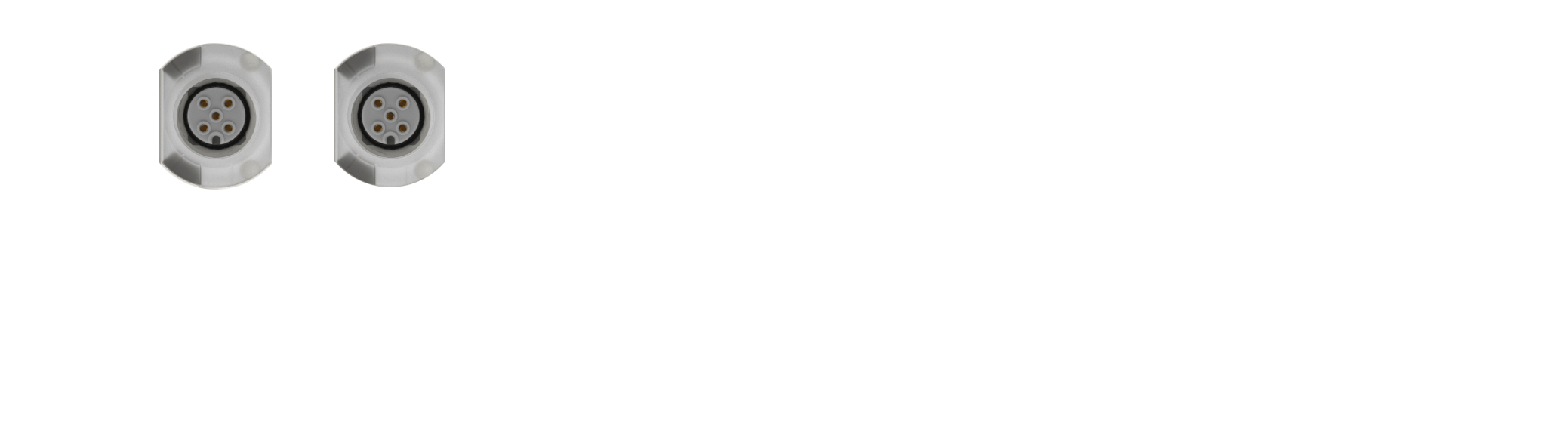

The IO-Link slots X6 and X7 enable the cost-efficient integration of complex sensors and actuators into the fieldbus system and extend digital standard signals.

• Adding up to 32 additional DIOs with IO-Link hubs
• Safe shutdown of IO-Link devices up to performance level d with Class B IO-Link port X7

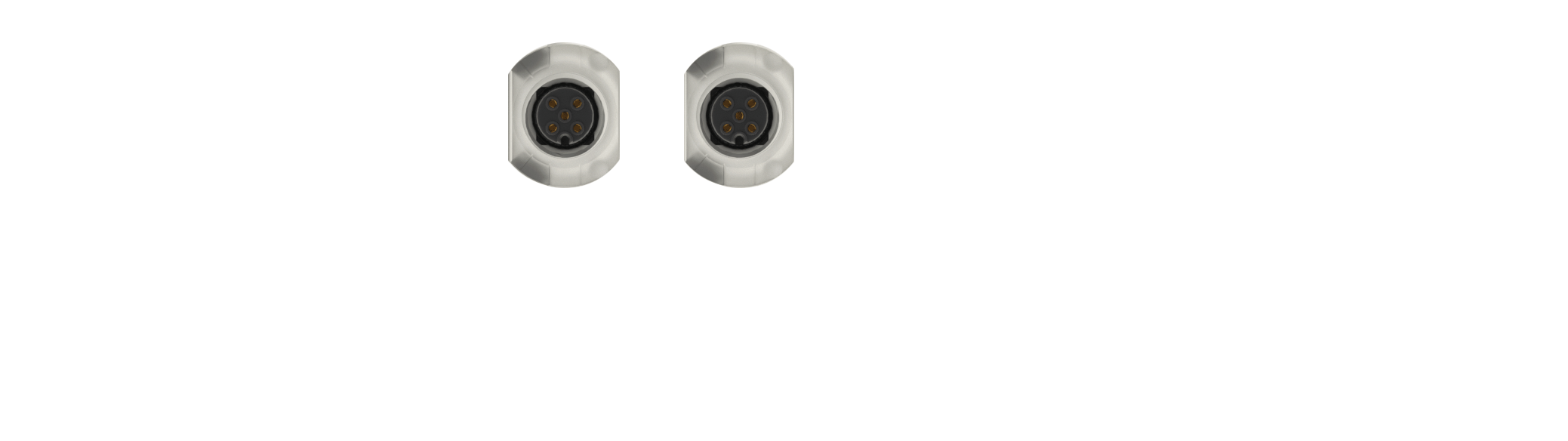

The digital ports X4 and X5 offer maximum flexibility and efficiency.

• Can be used as input or output
• Adjustable input delay from 1 to 15 milliseconds
• Sensor-related power supply up to 700 mA
• Outputs carry up to 2 A per channel
• Protected against reverse polarity, short circuit and overload

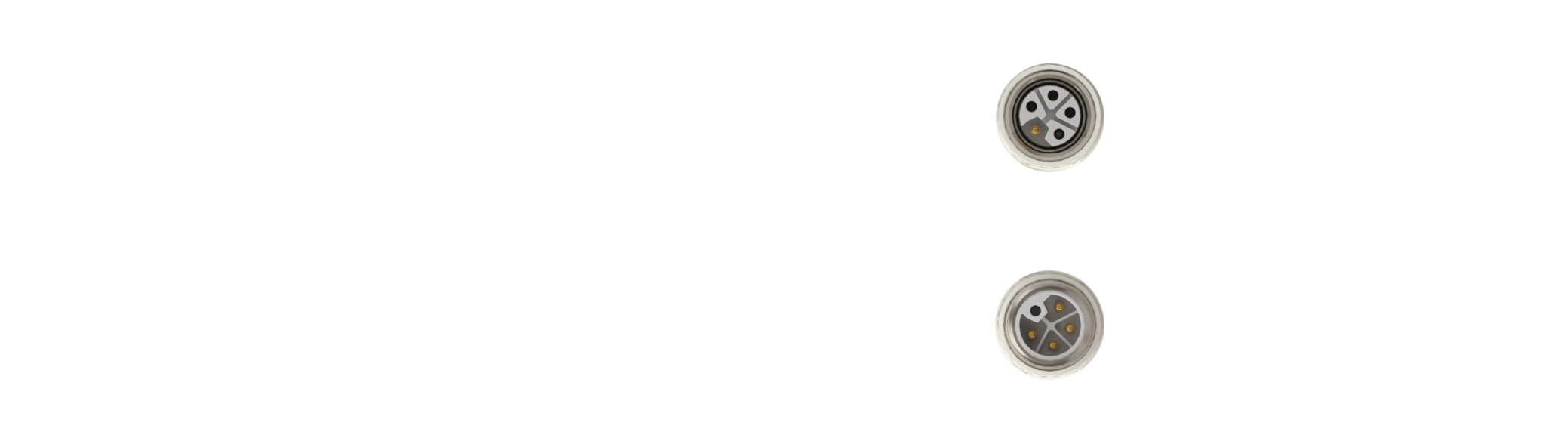

M12 Power L-coded power supply with up to 16 A.
The XD2 port forwards the voltage.
